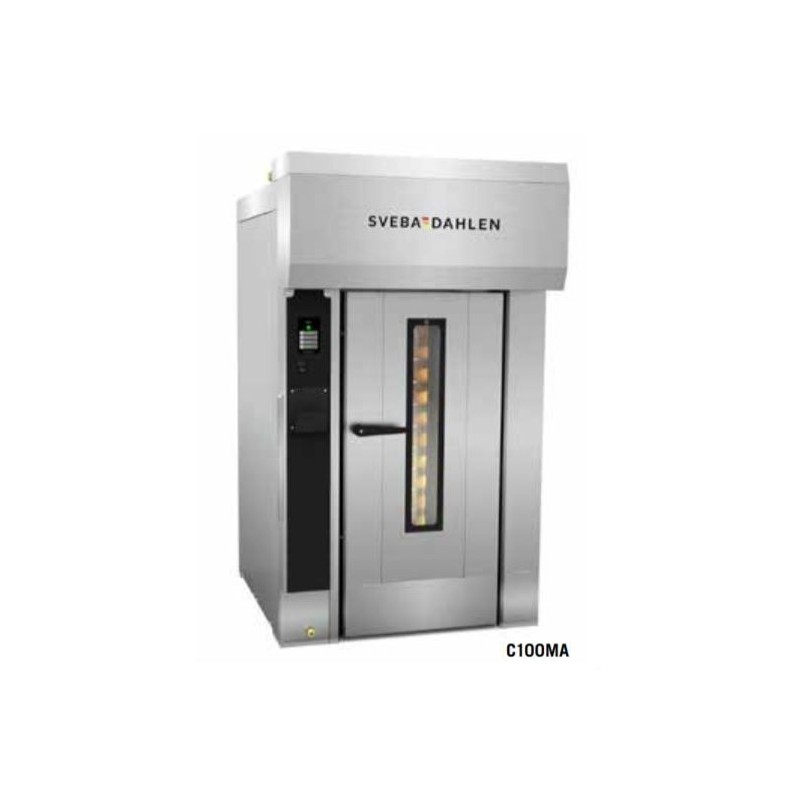

Rack oven type C100Ma SVEBA DAHLEN
Dimensions WxDxH: 1335 x2278 x 2245 mm
Made in accordance with USPHS standard and marine installation
S/S front, sides and interior.
Oven:
Right hand hinged door with double glazed window,
Capacity: 1 trolley ( trays 400x600mm)
Temperature max: 300°C
option available: Rotating platform with adjustable ramp.
option available: Rotating platform with adjustable ramp,heavy duty execution.
option available: Automatic rack lifting device.
option available: Insulated floor.
option available: Large double glazed window in insulated door.
option available: Canopy.
option available: Canopy with fan.
option available: Left-hand hinged insulated door with double glazed window, spring loaded door hinge and door stop.
option available: AES - Automatic evacuation system.
option available: Fully assembled oven.
option available: Slow start.
option available: Variable speed for fans.
option available: Water Filter.
option available: Sveba Connect - Cloud Solution.
Electrical connection: -/50-60 Hz (On request) - 40kW
Ex Works, Basse-Goulaine 44115 France
SV_D_C100Ma
Data sheet
- Equipment
- Equipment
- Frequency
- 50 Hz
60 Hz
